Static Stabilizer
Static Stabilizer

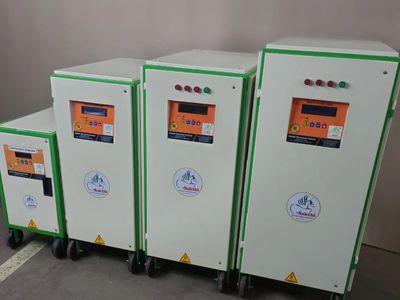

- A static stabilizer, or static voltage stabilizer (SVS), is an advanced power conditioning device that uses solid-state electronic circuitry to regulate voltage without any moving parts, such as motors or brushes. This lack of mechanical components results in an ultra-fast response time and high precision, making it ideal for sensitive equipment.
- Key Technology: IGBT and PWMUnlike traditional servo or relay-based stabilizers, which use mechanical movements to adjust voltage in steps, a static stabilizer employs modern power electronics:
- IGBTs (Insulated Gate Bipolar Transistors): These are high-speed solid-state switches used in the power stage to add or subtract voltage as needed.
- PWM (Pulse Width Modulation) Control: A digital signal processor (DSP) or microcontroller controls the IGBTs using PWM technology. This method allows the device to generate a precise correction voltage at a high frequency (around 20 KHz), which is then fed into a buck-boost transformer.
- Direct AC-AC Conversion: Many advanced static stabilizers use a direct AC-AC converter topology, which improves efficiency and reliability by eliminating the need for AC-DC-AC conversion.
Advantages
- Ultra-Fast Correction Speed: Can correct voltage fluctuations within milliseconds (typically less than 20 ms), effectively mitigating rapid sags and swells that a servo unit might miss.
- High Precision: Offers a tight voltage regulation accuracy, typically around of the set output voltage.
- Zero Maintenance: Without any moving parts (except cooling fans), there is no mechanical wear and tear, such as carbon brush replacement, significantly reducing maintenance needs.
- Silent Operation: The electronic operation is virtually silent, making it suitable for indoor use in offices, hospitals, or laboratories.
- Compact Size: Generally smaller and lighter than servo stabilizers of the same capacity.
